flange bearing

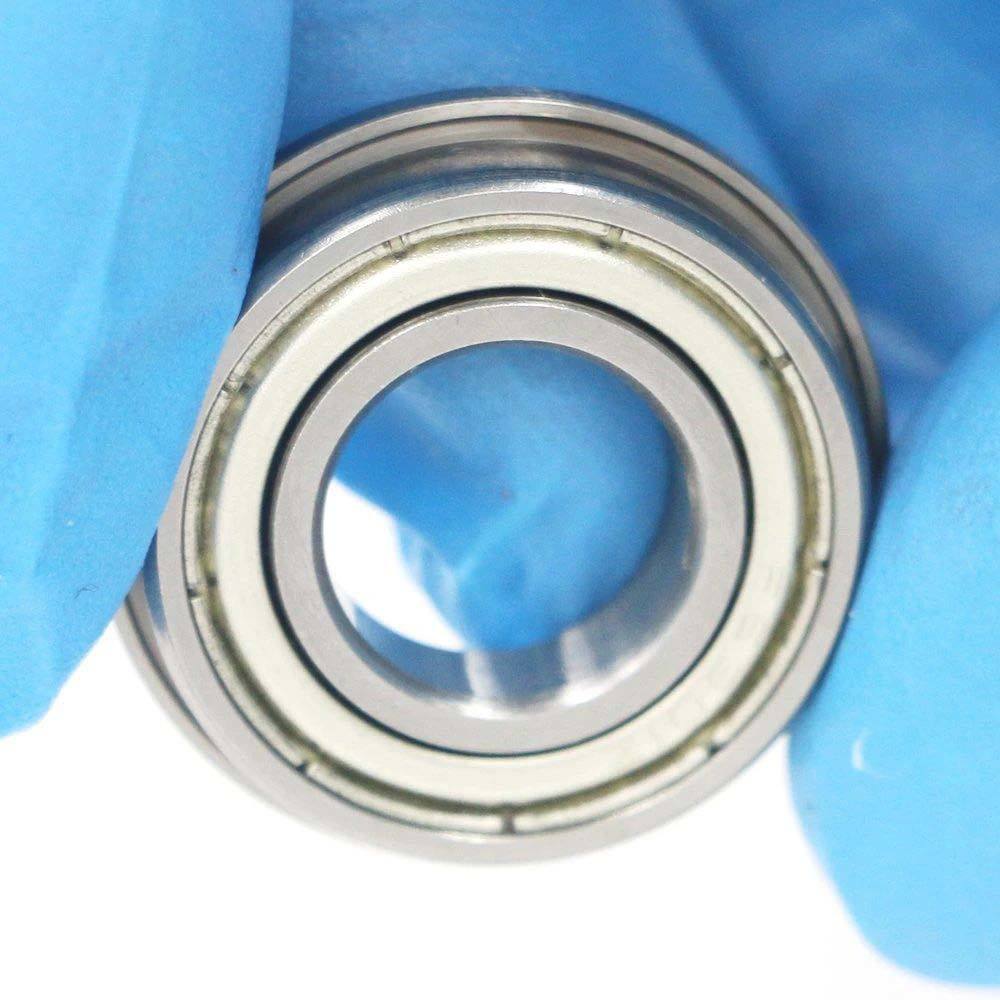

A flanged ball bearing is not truly a different type of bearing. Just as ball bearings are offered sealed or open, they are also available flanged or plain. The flange is just another option given to the design engineer by the bearing manufacturer. A flange is an extension, or a lip, on the outer ring of the bearing, designed to aid the mounting and positioning of a bearing in a delicate or problematic application.

Category：

Deep Groove Ball Bearing

Key words：

Rod End Bearing

Email:

WhatsApp:

flange bearing

Flanged bearings are most commonly used when the application requires the bearing to be locked in place. The design engineer will want to lock the bearing axially, along the shaft, or perpendicular to the shaft, radially, depending on his application. A flanged bearing is used in this instance to help withstand axial thrusting. If there is any axial load or axial push on the bearing, the flange will prevent the bearing from moving axially.

Any application that will require a bearing to be mounted in a high vibration area, as well as any application that requires high axial loads, will benefit from using a flanged bearing

Flanged bearings are most commonly used in light duty applications, such as food processing machinery, conveyors, material handling, belt drives in HVAC, textile, baggage systems, medical processing and various other light duty industrial applications.

Deep groove ball bearing is one of the most widely used rolling bearings. It is characterized by small friction resistance and high speed. It can be used to bear radial load or combined load of radial and axial at the same time. It can also be used to bear axial load.

The basic deep groove ball bearing consists of an outer ring, an inner ring, a group of steel balls and a group of retaining frames.
There are two types of deep groove ball bearings:Single row and Double row. The structure of deep groove ball can be divided into sealed and open type. Open type means that the bearing does not have a sealed structure. Sealed deep groove ball can be divided into dust-proof seal and oil-proof seal.

Compared with other types, deep groove ball bearing is easy to achieve higher manufacturing accuracy due to its simple structure, so it is convenient for series mass production with low manufacturing cost and widely used. Deep groove ball bearing can be used for gearbox, instrument, motor, household appliances,internal combustion engine, traffic vehicles, agricultural machinery, construction machinery, engineering machinery.

Parameters:

Seals Types	OPEN
Vibration Level	Z1V1,Z2V2,Z3V3
Clearance	C2,C0,C3,C4,C5
Tolerance Codes	ABEC-1,ABEC-3,ABEC-5
Materral	GCr15-China/AISI52100-USA/Din100Cr6-Germany
MOQ	1Set at least
Delivery Time	15-45 days after contract
Payment Terms	TT/PAPAL/WESTERN UNION
Package	Tube package+outer carton+pallets;Single box+outer carton+pallets; Tube package+middle box+outer carton+pallets;According to your requirement

Size (mm)								Model		Rated load		Rated speed
d	D	B	B1	rs	Df	Bf	Bf1	Switch	Dust cover type	Cr	Cor	*1000rpm
6	10	2.5	3	0.15	11.2	0.6	0.6	MF106	MF106ZZ	496	218	53
	12	3	4	0.20	13.6	0.6	0.8	MF126	MF126ZZ	714	295	50
	13	3.5	5	0.15	15	1	1.1	F686	F686ZZ	1082	442	50
	15	5	5	0.20	17	1.2	1.2	F696	F696ZZ	1340	523	45
	17	6	6	0.30	19	1.2	1.2	F606	F606ZZ	2263	846	45
	19	6	6	0.30	22	1.5	1.5	F626	F626ZZ	2336	896	40
	22	7	7	0.30	25	1.5	1.5	F636	F636ZZ	3287	1379	36
7	11	2.5	3	0.15	12.2	0.6	0.6	MF117	MF117ZZ	455	202	50
	13	3	4	0.20	14.2	0.6	0.8	MF137	MF137ZZ	541	276	48
	14	3.5	5	0.15	16	1	1.1	F687	F687ZZ	1173	513	50
	17	5	5	0.30	19	1.2	1.2	F697	F697ZZ	1605	719	43
	19	6	6	0.30	22	1.5	1.5	F607	F607ZZ	2336	896	43
	22	7	7	0.30	25	1.5	1.5	F627	F627ZZ	3287	1379	36
8	12	2.5	3.5	0.15	13.6	0.6	0.8	MF128	MF128ZZ	543	274	48
	14	3.5	4	0.20	15.6	0.8	0.8	MF148	MF148ZZ	817	386	45
	16	4	5	0.20	18	1	1.1	F688	F688ZZ	1252	592	43
	16	-	6	0.20	18	-	1.1	-	WF688ZZ	1252	592	43
	19	6	6	0.30	22	1.5	1.5	F698	F698ZZ	2237	917	43
	22	7	7	0.30	25	1.5	1.5	F608	F608ZZ	3293	1379	40
	24	8	8	0.30	27	1.5	1.5	F628	F628ZZ	3333	1423	34
9	17	4	5	0.20	19	1	1.1	F689	F689ZZ	1327	668	43
	20	6	6	0.30	23	1.5	1.5	F699	F699ZZ	2467	1081	40
	24	7	7	0.30	27	1.5	1.5	F609	F609ZZ	3356	1444	38
	26	8	8	0.30	28	2	2	F629	F629ZZ	4579	1970	34
10	15	3	4	0.10	16.5	0.8	0.8	F6700	F6700ZZ	577	302	-
	19	5	5	0.30	21	1	1	F6800	F6800ZZ	1600	756	34
	19	-	6	0.30	21	-	1	-	F62800ZZ	1600	756	34
	19	7	7	0.30	21	1.5	1.5	F63800	F63800ZZ	1600	756	34
	22	6	6	0.30	25	1.5	1.5	F6900	F6900ZZ	2696	1273	32
	26	8	8	0.30	28	2	2	F6000	F6000ZZ	4579	1970	34
	26	-	8	0.30	28	-	1.5	-	F6000ZZE	4579	1970	34
	30	-	9	0.60	32.25	-	2.25	-	F6200ZZ	5110	2390	30
